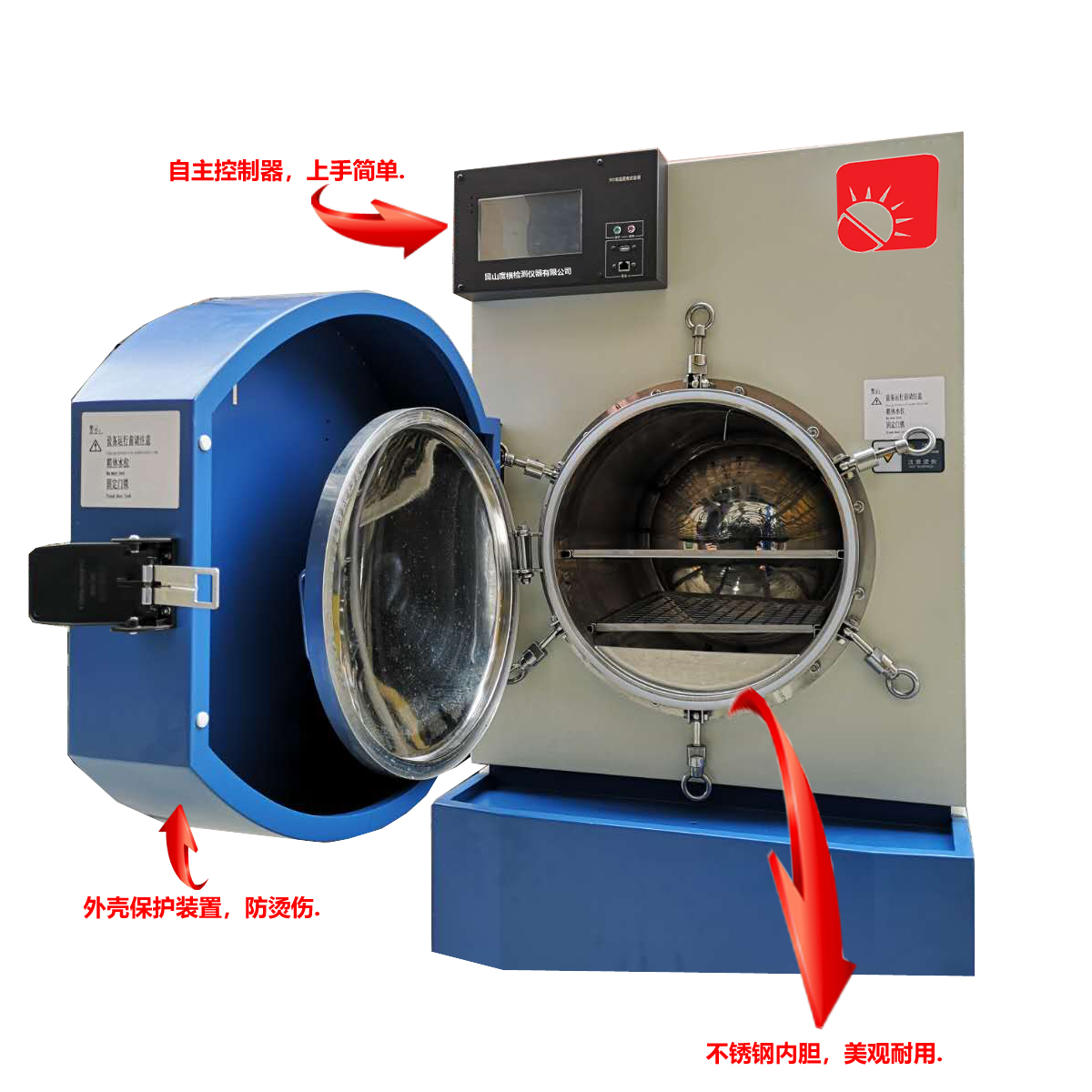

PCT aging test chamber

Back to list page

PCT high temperature and high humidity steaming and boiling machine is a device that accelerates the aging of semiconductor components under high temperature and high pressure. It is mainly suitable for the research and development, verification, improvement and other processes of semiconductor industry products. Customers can customize equipment of different specifications and models according to their requirements for measuring instruments.

Online consultation

Support hotline:00860512-83555991

Product Details

1. Circular inner box, stainless steel circular test inner box structure, in compliance with industrial safety container standards, designed to prevent condensation and dripping during testing.

2. Circular lining, stainless steel circular lining design, can avoid direct impact of steam latent heat on the test sample.

3. Patent type packing, when the pressure inside the box increases, there will be back pressure on the packing, which will make it more tightly integrated with the box, completely different from traditional extrusion type, and can extend the packing life.

4. The vacuum action before the experiment can extract the air from the original box and suck it into the new air (partial<1micorn) filtered by the filter core. To ensure the purity inside the box.

5. The critical point limit method automatically provides safety protection, and the abnormal cause and fault indicator light are displayed.


Technical parameter

Box size: 350 × 450 mm (φ × D) circular test box

Temperature range: (RT room temperature+15 ℃)~135 ℃ can be freely set (saturated steam temperature)

Pressure range: 0.5Kg/cm2~3.0Kg/cm2 absolute pressure; (Safe pressure capacity 3Kg/cm2=1 atmosphere+2Kg/cm2)

Time range: 0~999H/M/S; You can choose; Any setting.

Temperature distribution: (+/-) 2.5 ℃% (at 100 ℃); (+/-) 3.5 ℃% (at 135 ℃)

Heating time: (RT room temperature+15 ℃)~120 ℃ takes about 45 minutes

Pressurization time: (atmospheric pressure)/0.0Kg/cm2~1.00Kg/cm2, approximately 45 minutes required

Temperature control accuracy: (+/-) 0.5 ℃

Analysis accuracy: 0.1 ℃
